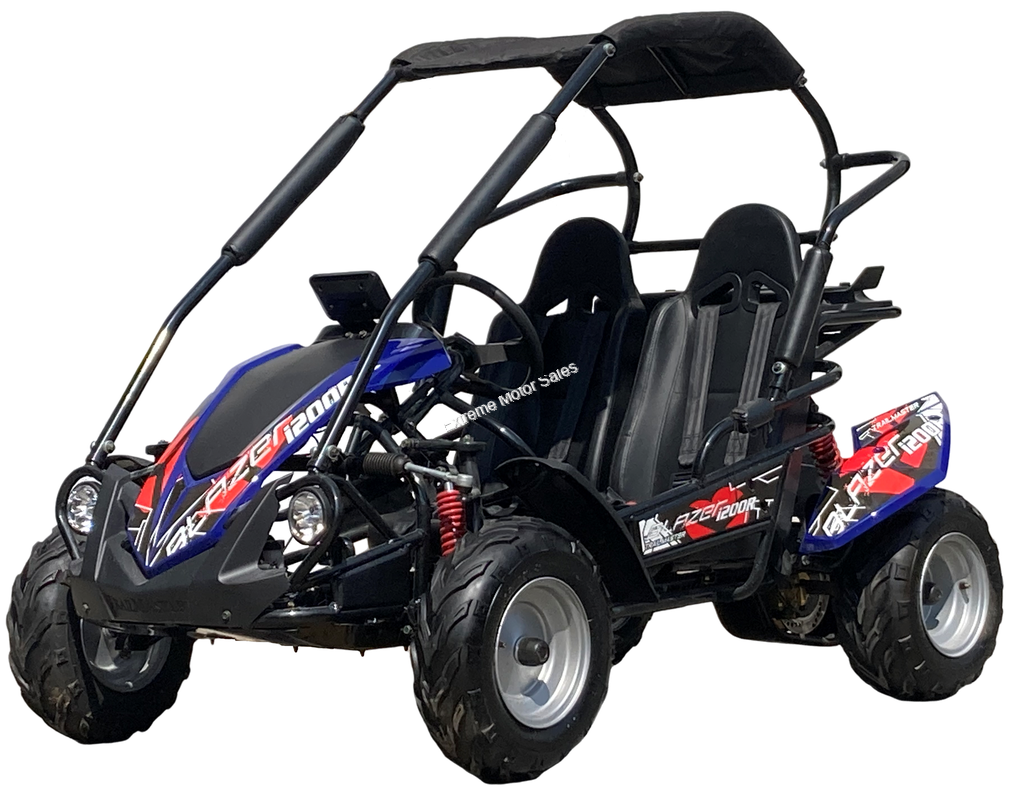

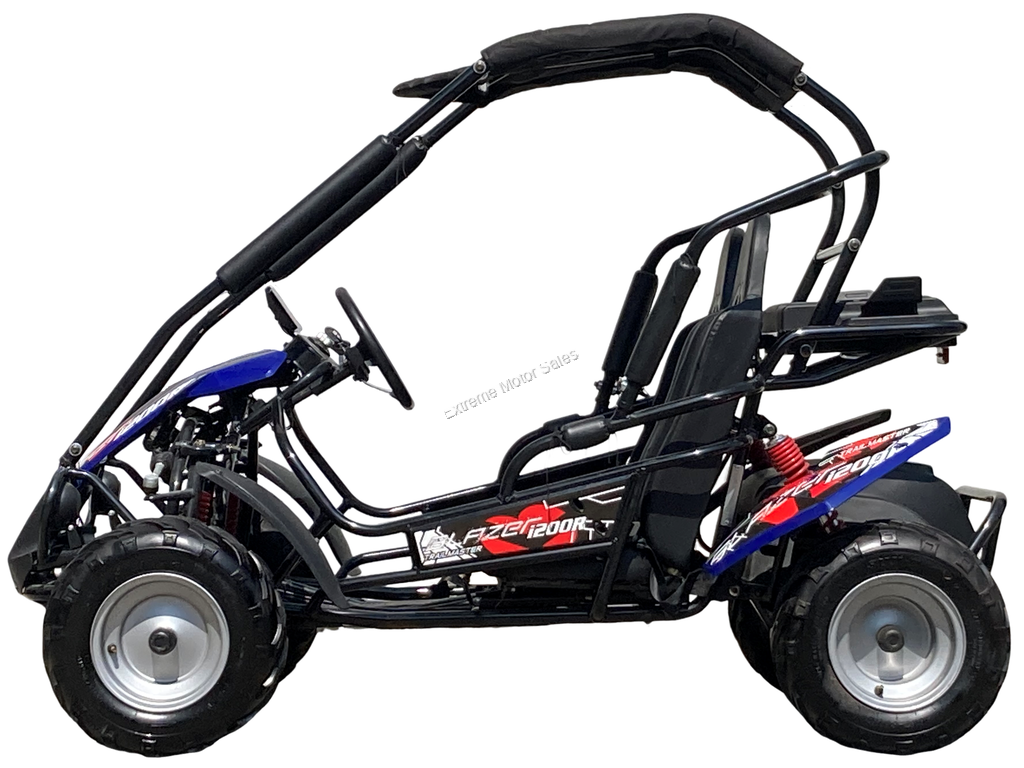

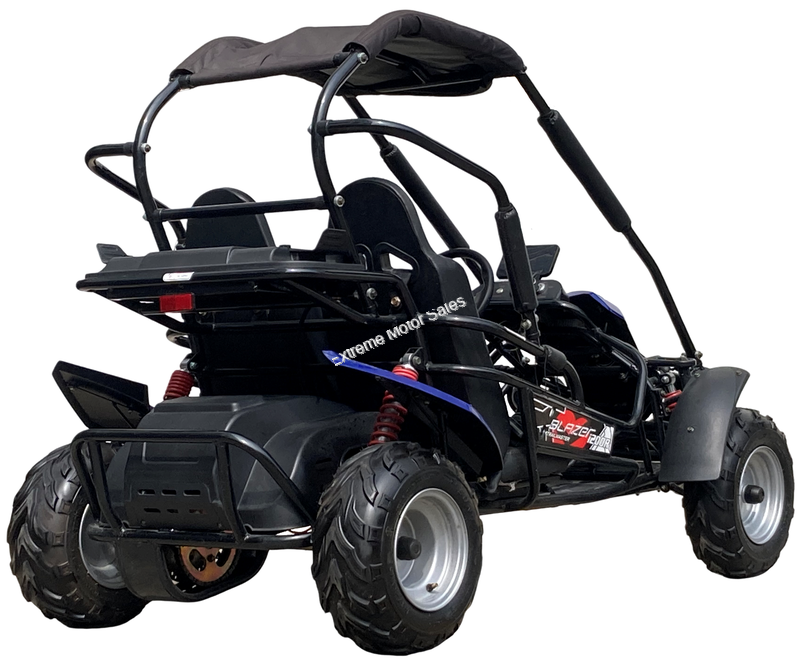

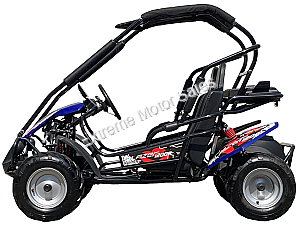

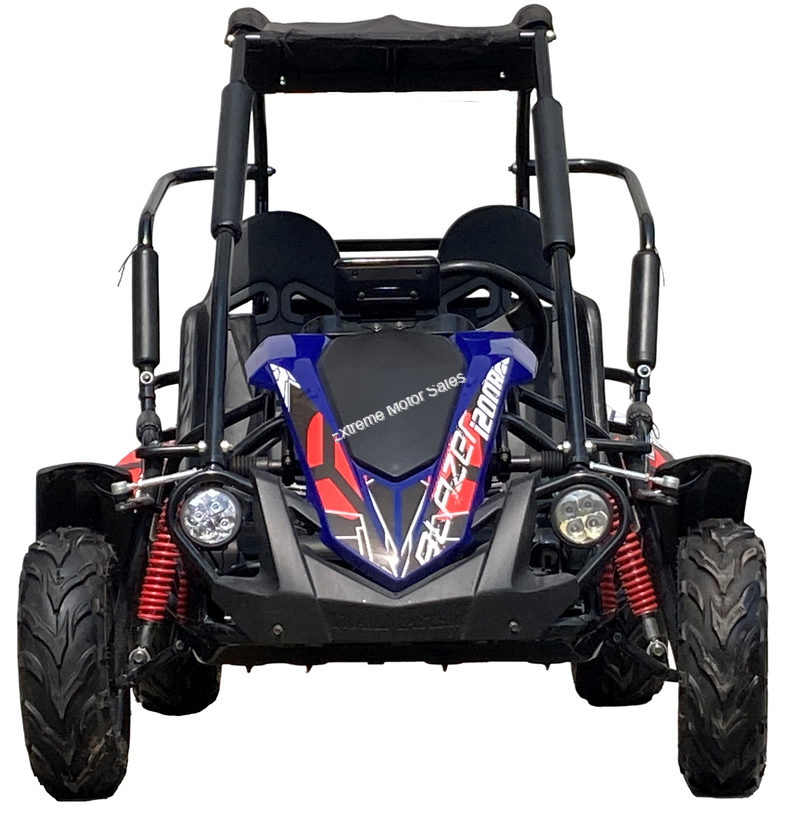

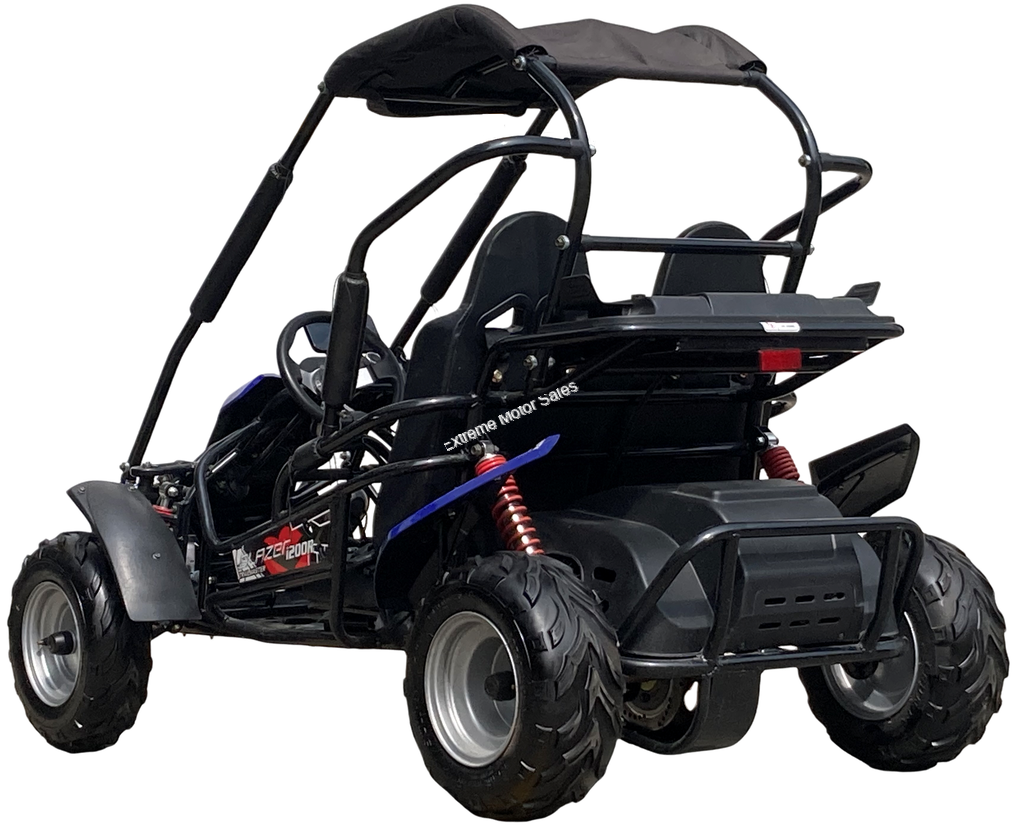

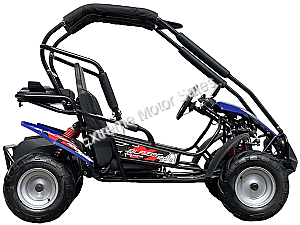

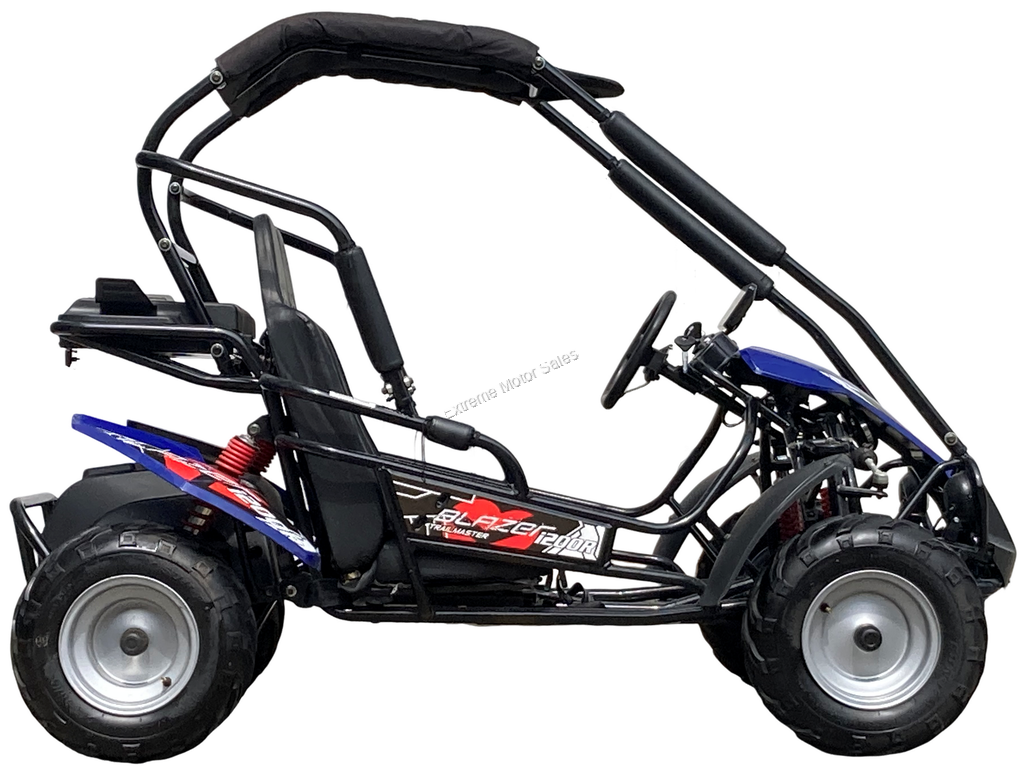

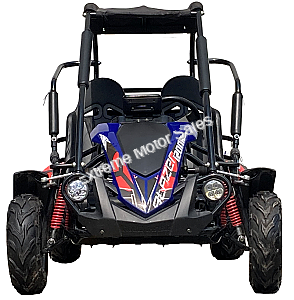

Trailmaster Blazer i200R Kids Go Cart Lithium Electric Kart For Kids
Trailmaster Blazer i200R, All Electric, 48 Volt max, Lithium Battery Pack , Up to 36 Mile range
Great news! The long wait is over, we are proud to announce US’s first Lithium batterymid-size go kart has arrived: the Blazer i200R!This Blazer i200R equips with 60V 1.8KW electricmotor and 48V 29Ah lithium battery that has the output power of 1.4 Kw. This fully automaticwith reverse Blazer i200R offers 2 forward driving mode: with “D” mode top speed 13M/h; with“S” mode top speed at 27M/h; Full charge can go up to 36 miles
Kids Go Kart, Kid Go Carts, Dune Buggy, Go Karts, Go Cart, Dune Buggies.
Specifications:
Blazer i200R (Elect)Key features:
•Powered by 48V, 29Ah Lithium battery

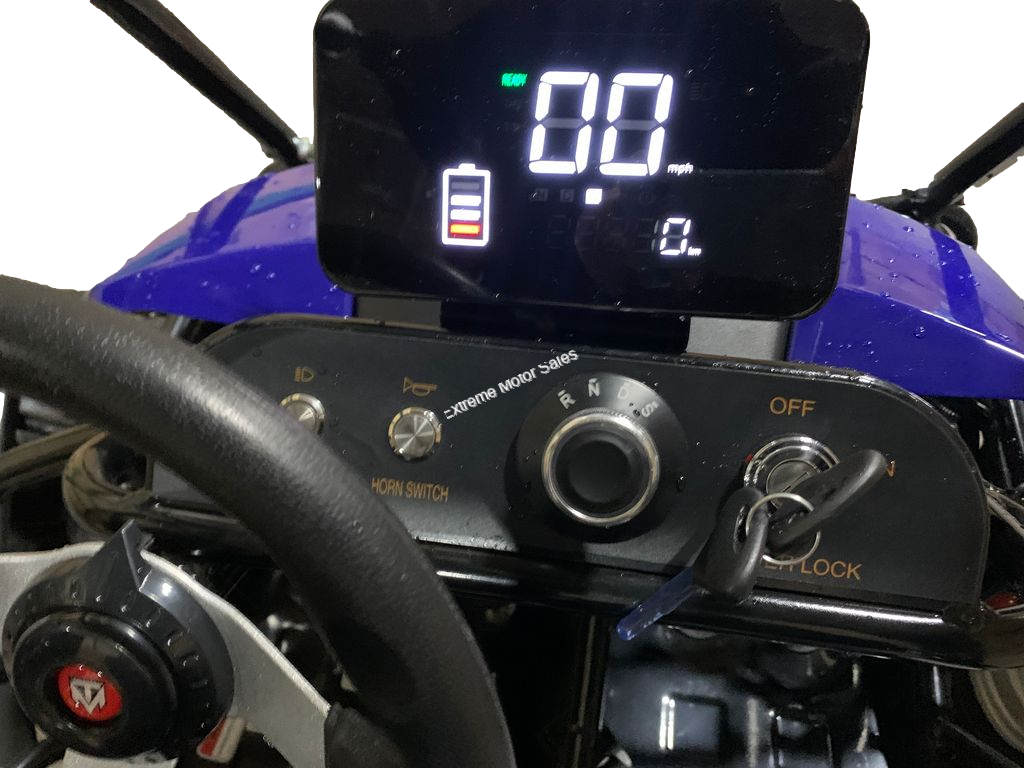

•Digital LED monitor
•Fully automatic with reverse
•Driver has to hit brake in order to engage throttle pedal for safety
•Offers two driving mode: with “D” mode top speed only 15M/h; with “S” mode topspeed 27M/h
•Strong low-end torque and able to climb 20 degrees slope
•Canopy top
•5-Point safety harness seatbelt

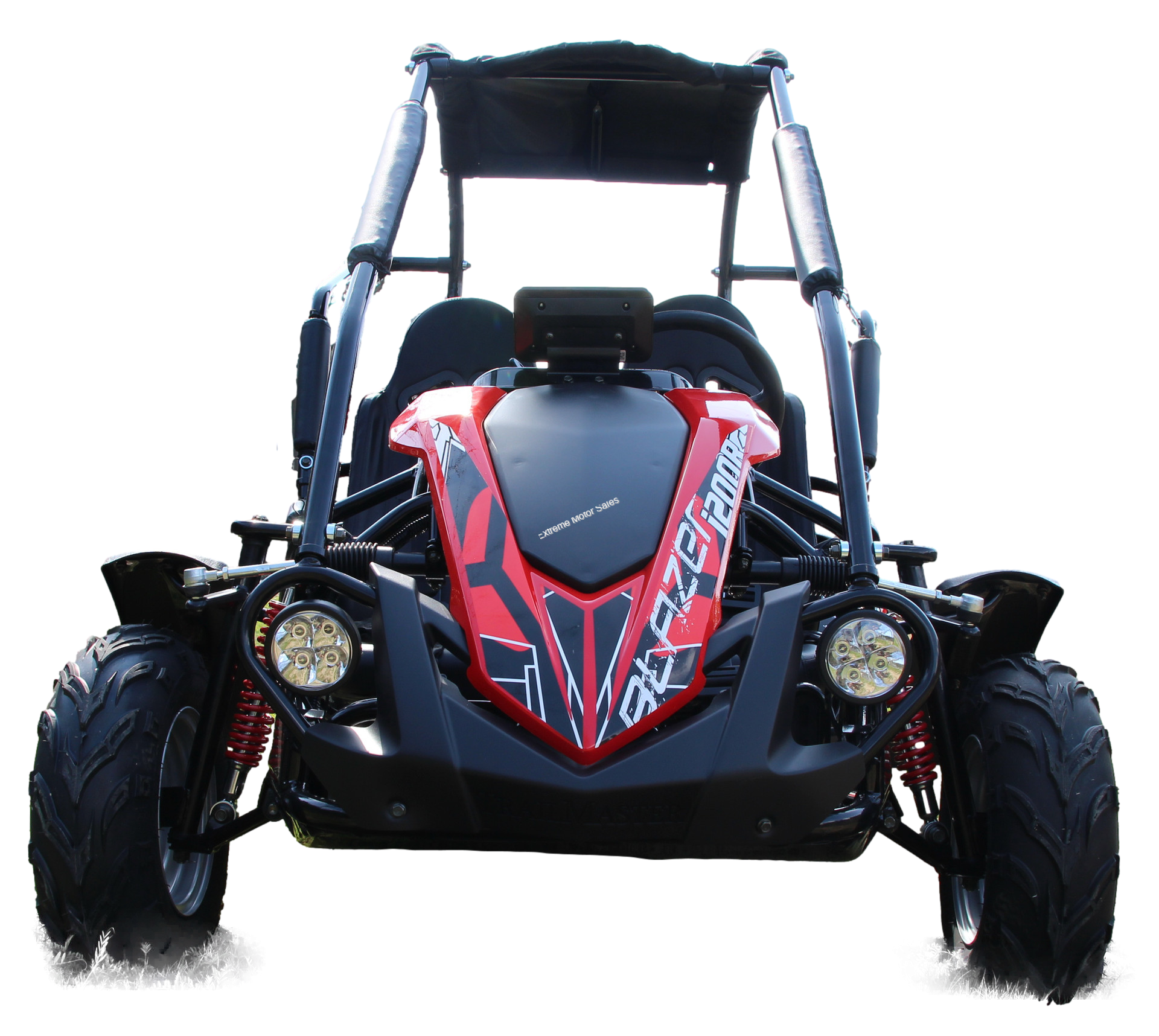

•LED headlight
•Horn
•All-wheel fenders
•Big tires: F / R: 16x6-8 / 16x7-8
•Rack and pinion steering wheel
•Hydraulic disc brake
•Padding over roll cage
•Individualsporting seats
•Adjustable driver seat: pedal to seat back adjustable from 34” to 39”
Maintenance tips:
1.If putting kart to storage, should turn off battery switch located above right rear axle close to the wheel.
2.Battery should be charged every two months if not in use.
Battery Information
•Battery: Lithium
•Battery Weight: 14 lbs
•Nominal Voltage: 48V
•Rated Capacity 29Ah
•Charging TempRange: 32-115 °F
•StorageTempRange: 14-115 °F
•Cycle Life: Cycle to 60% at normaltemperature, 100% DOD >= 600 times
•Charging Time: 9h
•Range:36 miles max depending onweight, speed and drivingconditions.
•Battery Warranty: 2 YearLimited warranty
Electric Motor Information
•Service Voltage: 60V
•Rated Power: 1.8KW
•Output Power: 1.4KW
•Rated Speed: 4350RPM
•Rated Current: 33A
•Rated Torque: 4Nm
•Max Torque: 87Nm/450A
•Current limit: 75A
General Information
•Suspension, F / R: Double A-arm /Double Oil Damped Shock
•Brakes: Rear Hydraulic brake, Disc
•Tires, F / R: 16x6-8 / 16x7-8
•Weight, G.W. / N.W.: 435 / 352 lbs
•Max load: 440 lbs
•Driving Mode: R-N-D-S
•Max speed: 15mph on “D” mode; 27mph on “S” mode
•Climbing ability: 20 degrees
General Information
•Wheelbase: 48.4 inches
•Height to seat: 10.2 inches
•Min ground clearance: 2.8 inches
•Pedal to seat back distance: 34-39inches
•OA L x W x H: 67x 44 x 51.2 inches
•Crate size: 70 X 44 X 26 inches
•Configurations And Specifications Subject To Change Without Notice.
